Pelican Protector Cases
Heavy Duty Cases
Pelican Protector Case
Since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican Cases have survived.
Combine the Pelican Protector with our custom PRO-Inserts to keep your items safe and secure.
Features:
-
Water Resistant
-
Crush Proof
-
Purge Valve
-
O Ring Seal
-
Rubber Handles
-
Stainless Steel Hardware
Keeping your equipment dry, dust free and ready for use.

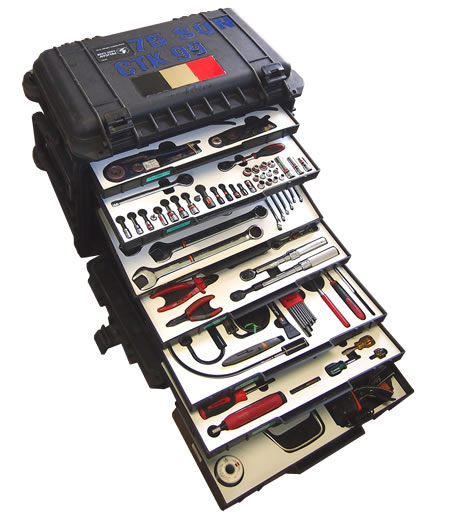

At Caseline we offer our PRO-Inserts, which are a high quality custom made foam insert. Manufactured in-house, our inserts can be designed for every Pelican Protector Case shape and size.
| Case |
Internal |
External Dimensions (mm) |
Base+Lid (mm) | Weight with Foam (kg) |
Weight without Foam (kg) |
Wheels | Extendable Handle | Price with Foam (Inc-GST) |
Price without Foam (Inc-GST) |
| 1120 | 184x121x78 | 206x167x90 | 65+13 | 0.56 | 0.53 | N | N | $90.00 | $75.00 |
| 1150 | 208x144x92 | 232x192x110 | 73+19 | 0.9 | 0.8 | N | N | $95.00 | $80.00 |
| 1170 | 268x153x80 | 296x212x96 | 53+27 | 0.95 | 0.89 | N | N | $120.00 | $110.00 |
| 1200 | 235x181x105 | 270x246x124 | 74+30 | 1.3 | 1.2 | N | N | $140.00 | $115.00 |
| 1300 | 235x178x155 | 270x246x174 | 125+30 | 1.6 | 1.4 | N | N | $160.00 | $135.00 |
| 1400 | 300x225x132 | 339x295x152 | 102+30 | 2 | 1.8 | N | N | $245.00 | $210.00 |
| 1430 | 344x146x297 | 430x244x341 | 246+51 | 2.95 | 2.54 | N | N | $275.00 | $235.00 |
| 1440 | 434x190x406 | 500x305x457 | 355+51 | 7.48 | 6.58 | Y | Y | $535.00 | $460.00 |
| 1450 | 371x258x152 | 406x330x174 | 108+44 | 2.9 | 2.5 | N | N | 315.00 | $275.00 |
| 1460 | 471x252x277 | 529x323x324 | 153+125 | 5.66 | 3.97 | N | N | $515.00 | $420.00 |
| 1470 | 397x265x95 | 424x332x111 | 61+37 | 2.5 | 1.94 | N | N | $365.00 | $340.00 |
| 1490 | 451x289x105 | 504x354x119 | 67+38 | 2.95 | 2.48 | N | N | $435.00 | $400.00 |
| 1495 | 479x333x97 | 549x438x124 | 68+28 | 3.8 | 3.28 | N | N | $480.00 | $440.00 |
| 1500 | 425x284x155 | 470x357x176 | 109+46 | 3.2 | 2.9 | N | N | $370.00 | $325.00 |
| 1510 | 501x279x193 | 559x351x229 | 147+45 | 6.17 | 5.44 | Y | Y | $530.00 | $450.00 |
| 1520 | 454x324x171 | 485x392x192 | 125+45 | 4.24 | 3.76 | N | N | $405.00 | $350.00 |
| 1550 | 468x355x193 | 524x428x206 | 149+44 | 5.4 | 4.8 | N | N | $460.00 | $385.00 |
| 1560 | 517x392x229 | 560x445x265 | 178+51 | 9.07 | 7.71 | Y | Y | $540.00 | $485.00 |
| 1600 | 544x419x200 | 616x493x220 | 155+44 | 6.4 | 5.9 | N | N | $540.00 | $450.00 |
| 1610 | 550x422x268 | 627x497x303 | 218+52 | 10.2 | 9.07 | Y | Y | $700.00 | $595.00 |
| 1620 | 543x414x319 | 630x492x352 | 267+51 | 11.8 | 11.1 | Y | Y | $760.00 | $645.00 |
| 1630 | 703x533x394 | 794x615x444 | 308+83 | 16.33 | 14.06 | Y | Y | $1135.00 | $985.00 |
| 1640 | 602x609x353 | 691x698x414 | 302+51 | 17.24 | 15.42 | Y | Y | $905.00 | $820.00 |
| 1650 | 724x441x267 | 781x520x295 | 224+46 | 16.1 | 13.2 | Y | Y | $795.00 | $685.00 |
| 1670 | 714x419x233 | 788x493x284 | 188+46 | 11.8 | 10.4 | Y | Y | $885.00 | $760.00 |
| 1660 | 715x501x447 | 800x581x482 | 359+89 | 19.1 | 15.5 | Y | Y | $1110.00 | $1010.00 |
| 1690 | 762x635x406 | 847x722x463 | 308+73 | 19.5 | 15.42 | Y | Y | $1315.00 | $1185.00 |
| 1700 | 908x343x133 | 968x406x155 | 89+44 | 7.7 | 7.3 | Y | N | $640.00 | $570.00 |
| 1720 | 1066x343x133 | 1127x406x155 | 89+44 | 8.6 | 7.6 | Y | N | $715.00 | $630.00 |
| 1730 | 863x609x317 | 952x689x365 | 254+63 | 17.24 | 13.61 | Y | N | $1220.00 | $1070.00 |
| 1740 | 1041x328x308 | 1122x409x356 | 243+65 | 12.2 | 10 | Y | N | 1065.00 | $915.00 |
| 1750 | 1283x343x133 | 1346x406x155 | 89+44 | 11.6 | 10.7 | Y | N | $755.00 | $655.00 |
| 1770 | 1386x396x219 | 1458x469x285 | 171+48 | 16.3 | 13.2 | Y | N | $1500.00 | $1345.00 |
| 1780 | 1044x547x378 | 1140x643x419 | 185+193 | 22.2 | 17.4 | Y | N | $1530.00 | $1380.00 |
| 0340 | 457x457x457 | 521x521x489 | 343+114 | 13.5 | 10.9 | Y | N | $955.00 | $845.00 |
| 0350 | 508x508x508 | 572x570x540 | 381+127 | 14.5 | 11.8 | O | N | $975.00 | $900.00 |
| 0370 | 610x610x610 | 673x673x641 | 483+127 | 18.6 | 14.5 | O | N | $1175.00 | $1080.00 |
| 0500 | 888x469x641 | 1015x596x728 | 584+57 | 26.6 | 22.7 | O | N | $2585.00 | $2280.00 |
| 0550 | 1208x611x449 | 1297x700x579 | 368+81 | 43.1 | 35.9 | O | N | $2695.00 | $2425.00 |
